- 1080p HD recording.
- Max. 30 M (7296 × 4104) resolution of the captured picture.
- Transmits videos to central video platform via 4G wireless communication.
- Dual positioning modules of GPS and Beidou, uploading the location information to the center in real time.
- IR function to recognize the facial features in the captured picture even in dim environment.
- Waterproof, dustproof, and anti-fall with 1.8 m fall protection height, applicable to all-day field work.
- 3G/4G/Wi-Fi network connection with flexible wireless transmission.
- H.264 and H.265 encoding
- Full HD1080p@30FPS recording resolution
- 2.4 inch TFT LCD Touch screen
- Built-in IR illuminators, Built-in GPS and WIFI
- 32GB internal storage
- 3300mAh dismountable battery for 12 hours recording.
- Weight: 190 g
- Size: 95 ×60 × 29 mm
- Android 9.0 3G&4G
Specification
| Camera |
| |
| Image Sensor | 1/3" progressive scan CMOS |
|
| Max. Resolution | 1920 × 1080 |
|
| Min. Illumination | Color: 0.15 Lu×@ (F2.0, AGC ON), 0 Lux with supplement light |
|
| Day ＆ Night | Switch IR Cut Filter Automatically |
|
| Zoom | 4x Digital |
|
| White Light | Supported |
|
| Lens |
| |
| Focal Length | 2.4 mm fixed lens |
|
| FOV | Horizontal FOV: 129°; Vertical FOV: 75°; Diagonal FOV: 154 |
|
| Aperture | F2.0 |
|
| Video |
| |
| Video Compression | H.264, H.265 |
|
| Video Format | PS, MP4 |
|
| Main Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576) |
|
| Sub Stream | 30 fps (1280 × 720, 720 × 576) |
|
| Pre-record ＆ Post- record | Pre-record: 60 s Post-record: 60 s |
|
| Audio |
| |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, AAC-LC |
|
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/AAC-LC) |
|
| Image |
| |
| Image Format | JPEG |
|
| Screen |
| |
| Resolution | 320 × 240 |
|
| Screen Size | 2.4" |
|
| Touchscreen | Supported |
|
| Storage |
| |
| RAM | 2 GB |
|
| ROM | Default 32 GB, 64 GB/128 GB/256 GB optional |
|
| IR |
| |
| IR Range | Up to 10 m |
|
| IR Wavelength | 850 nm |
|
| Wireless Network |
| |
| Bluetooth | BT4.2 |
|
| Wi-Fi Protocol | 802.11 a/b/g/n/ac |
|
| Wi-Fi Frequency Band | 2.412 GHz to 2.472 GHz, 5.15 GHz to 5.25 GHz, 5.725 GHz to 5.875 GHz |
|
|
Cellular Network | Only available for models with GLE : GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD -LTE: B38/B39/B40/B41 |
|
| Positioning Mode | GPS |
|
| Network | ||
| Protocol | HTTPS, RTSP, NTP, FTP | |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP5.0 | |
| Interface | ||
| Indicator | 2 Indicator(s) for Charging/Working/Recording/Exception | |
| Button | Power, Recording, Tag, SOS, Fn, PTT, Capture | |
| SIM Card | Only available for models with /GLE: 1 (Nano-SIM) | |
| Charging Interface | Mini USB, Pogo Pin | |
| USB | USB 2.0 | |
| Laser Positioning | Supported | |
| General | ||
| Operating Condition | -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing) | |
| Power | 5 VDC, 2.0 A, max. 10 W | |
| Dimension | 95 mm × 60 mm × 29 mm (3.7" × 2.4" × 1.1") | |
| Weight | 190 g (without mounting) (0.4 lb.) | |
| Operating System | Android 9.0 | |
| Client | VIMS software | |
| MIC | Supported | |
| Speaker | 1 Built-in speaker, Max. power consumption: 1 W, Max. sound pressure level: 92 dB (10 cm) | |
| Battery | ||
| Battery Type | Lithium-ion battery, dismountable | |
| Capacity | 3300 mAh | |
| Charging Time | ≤ 4 h | |
| Battery Duration | ≥ 11 h in 720p resolution | |
| Approval | ||
| RF | EN 300 328 V2.1.1 (BT or 2.4G); EN 62311: 2008 (BT or 2.4G); EN 55032: 2015; EN 61000-3-2: 2014; EN 61000-3-3: 2013; EN 50130-4: 2011 + A1: 2014); | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014 | |
|
Safety | CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1: 2020 + A11: 2020 CE-LVD: EN 62368-1: 2014/A11: 2017 | |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 | |
| Protection | IP67: IEC 60529-2013, MIL STD 810G | |
| Battery (Included 01 pcs). Model: TB-MH1310-N1
| Capacity: 3300mAh Type: Li-ion Voltage: 3.8V Rate: 12.54Wh Color: Black |

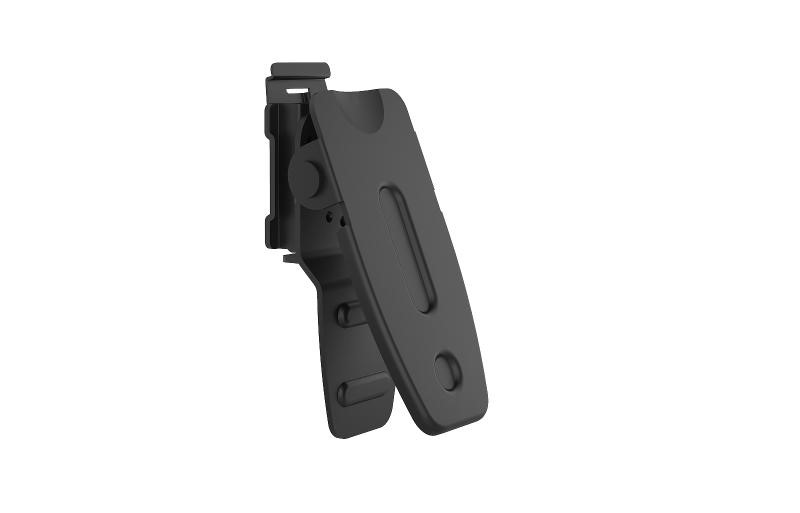

| Metal clip TB-MH1710-N1-S
| Body material: plastic Color: Black Self Weight：30g 109*51*14.5mm |
| Charger TB-MH1411-N1
| Power Supply: 5.4 VDC/2.2 A Charging Current: 500 mA Charging Duration: Approx. 8 hours (connected with dock station),Approx. 3 hours without host (connected with adaptor), Indicator Status: |
